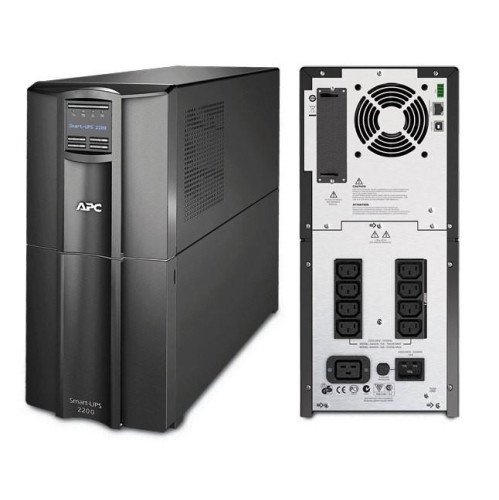

APC Smart-UPS 2200VA LCD 230V - SMT2200I

SMT2200I Features

APC Smart-UPS 2200VA LCD 230V

• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Energy meter
  Provides actual kilowatt hours of usage for energy conscious users.
• Green mode
  Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High online efficiency
  Reduces utlility costs, generates less heat.
• Intuitive LCD interface
  Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Predictive replace battery date
  Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Pure sine wave output on battery
  Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Sequenced network shutdown and reboot
  Customize network shutdown and reboot sequence of connected servers and UPSs.
• Single switched outlet group
  Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• SmartSlot
  Customize UPS capabilities with management cards.
• StruxureWare Data Center Expert compatible
  Enables centralized management via StruxureWare Data Center Expert.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.

Output

• Output power capacity
  1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts)
  1.98 KWatts / 2.2 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Topology
  Line Interactive
• Waveform type
  Sine wave
• Output Connections
  (1) IEC 320 C19 (Battery Backup)
  (8) IEC 320 C13 (Battery Backup)
  (2) IEC Jumpers (Battery Backup)
• Transfer Time
  2ms typical

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Input voltage range for main operations
  160 - 286V
• Input voltage adjustable range for mains operation
  151 - 302V
• Number of Power Cords
  1
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  3hour(s)
• Replacement Battery
  RBC55
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  1
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)
  SmartSlot
• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  365Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  435mm , 43.5CM
• Maximum Width
  197mm , 19.7CM
• Maximum Depth
  544mm , 54.4CM
• Net Weight
  48.8KG
• Shipping weight
  61.9KG
• Shipping Height
  699mm , 69.9CM
• Shipping Width
  381mm , 38.1CM
• Shipping Depth
  762mm , 76.2CM
• Color
  Black
• Units per Pallet
  9.0

Environmental

• Operating Temperature
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  45.0dBA
• Online thermal dissipation
  275.0BTU/hr

Conformance

• Approvals
  CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
• Standard warranty
  3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
• PEP
  Available in Documentation tab
• EOLI
  Available in Documentation tab
