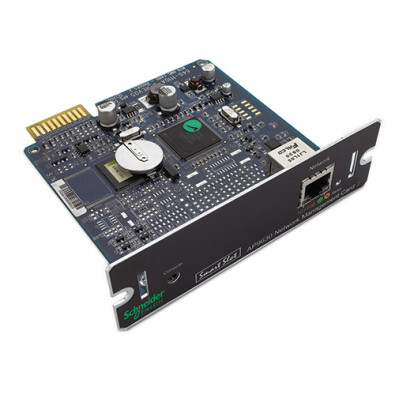

UPS Network Management Card 2 - AP9630

AP9630 Features

UPS Network Management Card 2

• BACnet/IP Support
  Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (pending BTL certification).
• Command line interface
  Offers simultaneous remote management access through Telnet and SSH
• Compatible with SmartSlot enabled UPSs
  Compatible with all SmartSlot UPSs
• Device Encryption
  Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
• IPv6 Support
  Capable of operating on a network using IPv6 protocol
• Modbus TCP Support
  Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
• Multiple language support
  Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
• Multiple user access
  Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
• Smart Battery Management Support
  Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
• Standard UPS RFC 1628 MIB Compatible
  Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
• UPS Firmware Update
  User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

UPS Network Management Cards Features & Benefits

Communications & Management

• Authentication
  Radius

Physical

• Maximum Height
  38mm , 3.8CM
• Maximum Width
  121mm , 12.1CM
• Maximum Depth
  114mm , 11.4CM
• Net Weight
  0.08KG
• Shipping weight
  0.34KG
• Shipping Height
  51mm , 5.1CM
• Shipping Width
  235mm , 23.5CM
• Shipping Depth
  159mm , 15.9CM
• Color
  Black

Environmental

• Operating Temperature
  0 - 45 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -5 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000meters

Conformance

• Approvals
  AS/NZS 3548 (C-Tick) Class A, EN 55022 Class A, EN 55024, FCC Part 15 Class A, GOST, ICES-003, VCCI Class A
• Standard warranty
  2 years repair or replace

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
• PEP
  Available in Documentation tab
• EOLI
  Available in Documentation tab
• Battery Directive
  Compliant
• Battery Notes
  ts_Battery_Notes
